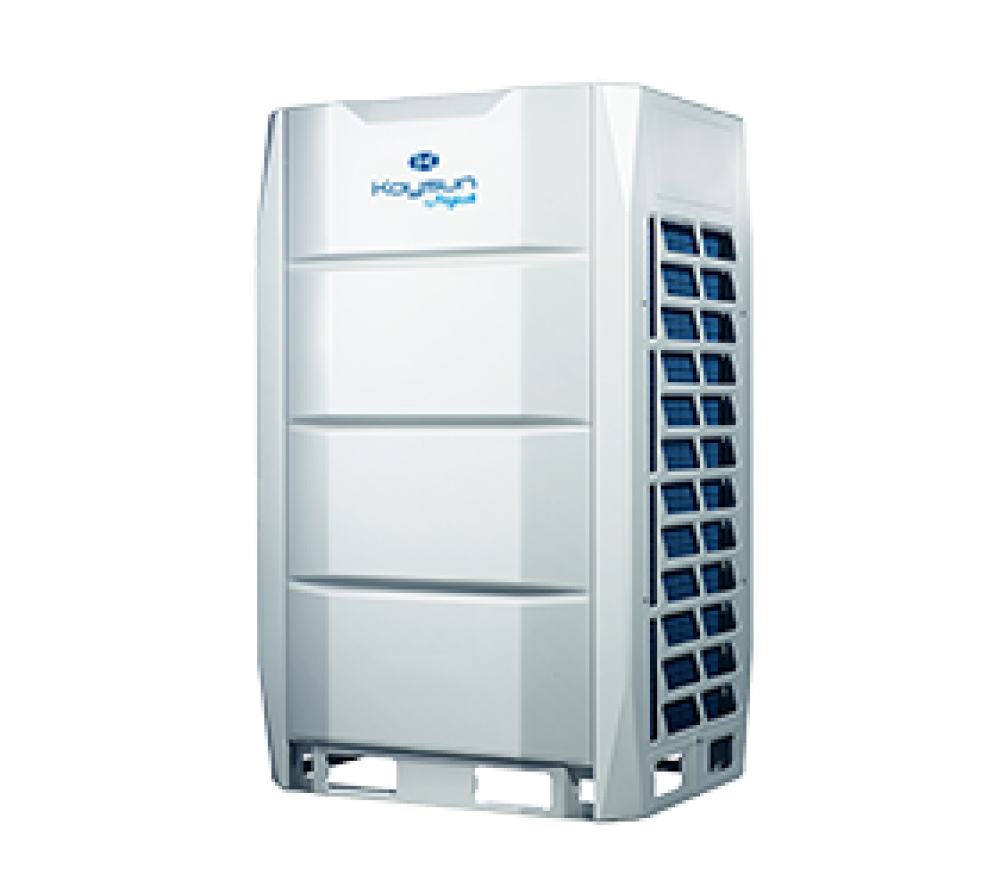

KAYSUN Amazon IV HR-OU
VRF
The Amazon IV HR outdoor groups are variable flow Full DC Inverter with
heat recovery (3-pipe). Thanks to their multigroup Inverter boxes, they
can produce heat and cold simultaneously on the same cooling circuit.
They can achieve capacities of up to 150 kW through the combination of
modules, and the units stand out for their high energy efficiency.
Characteristics
• Up to 3 combinable modules.
• Simultaneity up to 200%.
• Available pressure up to 80Pa.
• Changeover boxes with 1, 4, 6 and 10 outlets.
• Hot water production up to 80ºC.
• Continuous heating.
heat recovery (3-pipe). Thanks to their multigroup Inverter boxes, they
can produce heat and cold simultaneously on the same cooling circuit.
They can achieve capacities of up to 150 kW through the combination of
modules, and the units stand out for their high energy efficiency.
Characteristics
• Up to 3 combinable modules.
• Simultaneity up to 200%.
• Available pressure up to 80Pa.
• Changeover boxes with 1, 4, 6 and 10 outlets.
• Hot water production up to 80ºC.
• Continuous heating.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SEER/SCOP | Outdoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) | Nº CONNECTABLE INDOOR UNITS | DIMENSIONS (mm) | |||||||
| K3F-252 DN4S | 22,4 | 25 | 7,26/4,29 | 58 | R-410A | 3f/380V | 20A | -5 / 52 °C | -25 / 19 °C | 64 | 990 / 1635 / 790 |
| K3F-280 DN4S | 28 | 31,5 | 6,60/4,39 | 61 | R-410A | 3f/380V | 25A | -5 / 52 °C | -25 / 19 °C | 64 | 990 / 1635 / 790 |
| K3F-335 DN4S | 33,5 | 37,5 | 6,80/4,60 | 62 | R-410A | 3f/380V | 25A | -5 / 52 °C | -25 / 19 °C | 64 | 990 / 1635 / 790 |
| K3F-400 DN4S | 40 | 45 | 6,70/4,27 | 64 | R-410A | 3f/380V | 30A | -5 / 52 °C | -25 / 19 °C | 64 | 1340 / 1635/ 825 |
| K3F-450 DN4S | 45 | 50 | 6,44/4,33 | 64 | R-410A | 3f/380V | 35A | -5 / 52 °C | -25 / 19 °C | 64 | 1340 / 1635/ 825 |
| K3F-500 DN4S | 50 | 56 | 6,22/4,40 | 65 | R-410A | 3f/380V | 40A | -5 / 52 °C | -25 / 19 °C | 64 | 1340 / 1635/ 825 |
