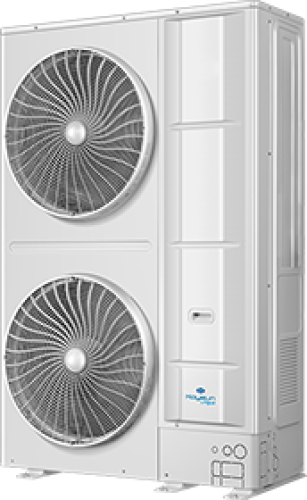

KAYSUN Amazon Modular FD-OU
VRF
Complete range of front discharge units from 33.5 kW to 61.5 kW fully
modular with each other. This makes them highly adaptable to the
capacity and space requirements of each installation.
Characteristics
• Combinable up to 4 outdoor units.
• External static pressure up to 35Pa.
• Simultaneity coefficient from 50 to 200%.
• 60-step energy management.
• Automatic refrigerant recycling.
• Silent mode.
modular with each other. This makes them highly adaptable to the
capacity and space requirements of each installation.
Characteristics
• Combinable up to 4 outdoor units.
• External static pressure up to 35Pa.
• Simultaneity coefficient from 50 to 200%.
• 60-step energy management.
• Automatic refrigerant recycling.
• Silent mode.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SEER/SCOP | Outdoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) | Nº CONNECTABLE INDOOR UNITS | DIMENSIONS (mm) | |||||||
| KMF-335 DN6S | 33,5 | 33,5 | 6,38/4,11 | 58 | R-410A | 3f/380V | 32A | -15 / 55 °C | -30 / 30 °C | 19 | 1130 / 1760 / 580 |
| KMF-400 DN6S | 40 | 40 | 6,23/4,00 | 59 | R-410A | 3f/380V | 32A | -15 / 55 °C | -30 / 30 °C | 22 | 1130 / 1760 / 580 |
| KMF-450 DN6S | 45 | 45 | 6,15/4,10 | 60 | R-410A | 3f/380V | 40A | -15 / 55 °C | -30 / 30 °C | 26 | 1250 / 1760 / 580 |
| KMF-560 DN6S | 56 | 56 | 5,95/4,07 | 61 | R-410A | 3f/380V | 50A | -15 / 55 °C | -30 / 30 °C | 32 | 1250 / 1760 / 580 |
| KMF-615 DN6S | 61,5 | 61,5 | 5,80/4,00 | 62 | R-410A | 3f/380V | 50A | -15 / 55 °C | -30 / 30 °C | 35 | 1250 / 1760 / 580 |
