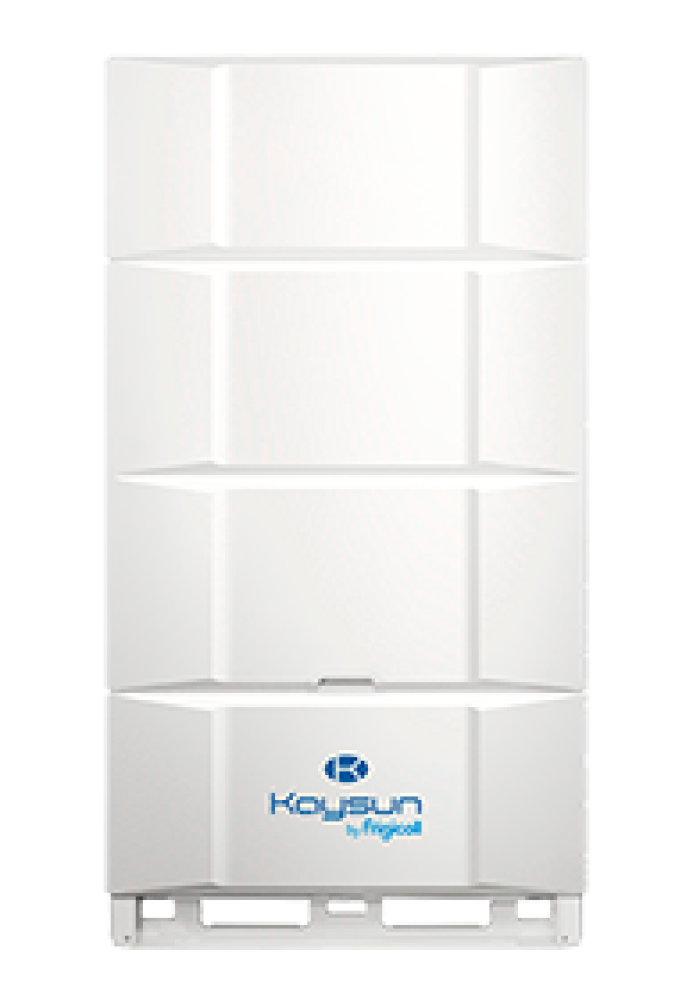

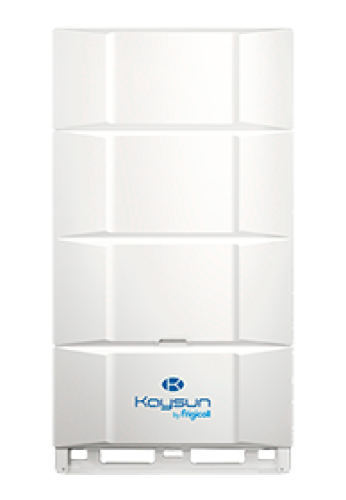

KAYSUN Amazon Unitario OU
VRF
The V8 Series VRF uses a variety of algorithms and self-learning
technology to monitor the operation of the equipment through
operating parameters and timely maintenance, so that the equipment
always runs in optimal condition throughout its life cycle.
Characteristics
• Single modules.
• Up to 200% simultaneity.
• Auto Addressing.
• 10 Priority Modes.
• Advanced Silent Technology.
technology to monitor the operation of the equipment through
operating parameters and timely maintenance, so that the equipment
always runs in optimal condition throughout its life cycle.
Characteristics
• Single modules.
• Up to 200% simultaneity.
• Auto Addressing.
• 10 Priority Modes.
• Advanced Silent Technology.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SEER/SCOP | Outdoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) | Nº CONNECTABLE INDOOR UNITS | DIMENSIONS (mm) | |||||||
| K2UF-280 DN6 | 28 | 28 | 7,25/4,26 | 58 | R-410A | 3f/380V | 25A | -15 / 55 °C | -30 / 30 °C | 16 | 940 / 1760 / 825 |
| K2UF-450 DN6 | 45 | 45 | 6,83/4,26 | 65 | R-410A | 3f/380V | 40A | -15 / 55 °C | -30 / 30 °C | 26 | 940 / 1760 / 825 |
| K2UF-500 DN6 | 50 | 50 | 6,11/4,14 | 65 | R-410A | 3f/380V | 50A | -15 / 55 °C | -30 / 30 °C | 29 | 1340 / 1760 / 825 |
| K2UF-560 DN6 | 56 | 56 | 6,63/4,20 | 66 | R-410A | 3f/380V | 50A | -15 / 55 °C | -30 / 30 °C | 33 | 1340 / 1760 / 825 |
| K2UF-670 DN6 | 67 | 67 | 6,14/4,28 | 67 | R-410A | 3f/380V | 63A | -15 / 55 °C | -30 / 30 °C | 39 | 1340 / 1760 / 825 |
| K2UF-785 DN6 | 78,5 | 78,5 | 6,02/4,28 | 68 | R-410A | 3f/380V | 63A | -15 / 55 °C | -30 / 30 °C | 46 | 1880 / 1760 / 825 |
| K2UF-900 DN6 | 90 | 90 | 5,78/4,20 | 68 | R-410A | 3f/380V | 80A | -15 / 55 °C | -30 / 30 °C | 53 | 1880 / 1760 / 825 |
