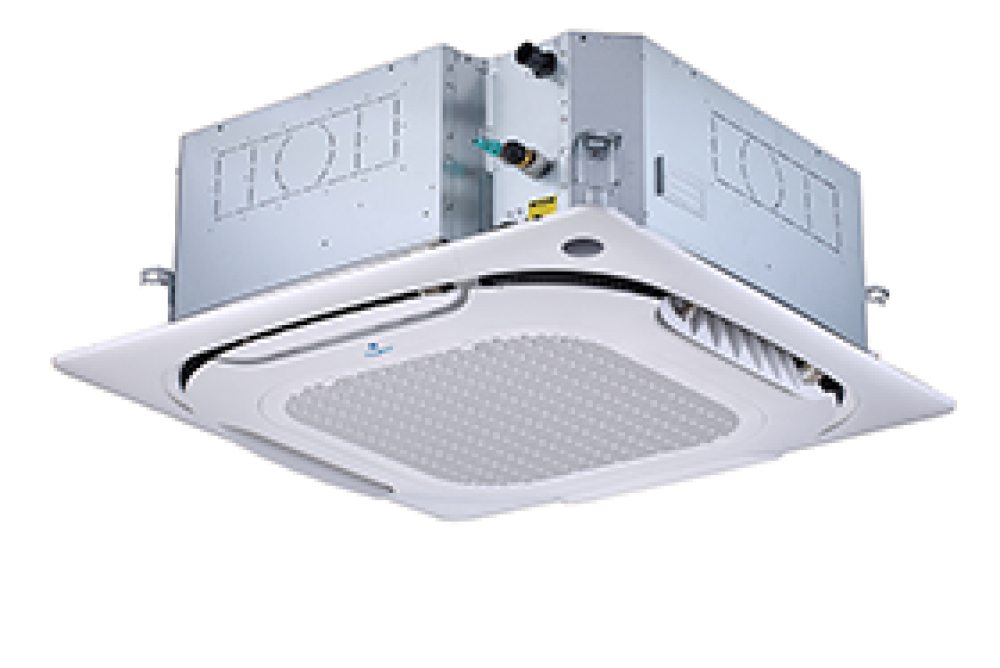

KAYSUN Cassette 840×840-IN
VRF
The 840x840 Compact cassettes supply air in a 360° pattern
for even, fast, and wide-reaching air conditioning that reaches
every corner of your room, thanks to their DC Inverter fan with 50
Pa of available pressure.
Characteristics
• 360º Airflow.
• Individual louver control.
• Available pressure up to 50 Pa.
• Installation in ceilings up to 5 m high.
• 7 fan speeds available.
for even, fast, and wide-reaching air conditioning that reaches
every corner of your room, thanks to their DC Inverter fan with 50
Pa of available pressure.
Characteristics
• 360º Airflow.
• Individual louver control.
• Available pressure up to 50 Pa.
• Installation in ceilings up to 5 m high.
• 7 fan speeds available.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | |||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Max. pressure available | DIMENSIONS (mm) | ||||||
| KCIBF-56 DN5.0 | 5,60 | 6,30 | 29/30/32 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 840 / 204 / 840 |
| KCIBF-71 DN5.0 | 7,10 | 8,00 | 32/33/36 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 840 / 246 / 840 |
| KCIBF-80 DN5.0 | 8,00 | 9,00 | 32/34/37 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 840 / 246 / 840 |
| KCIBF-100 DN5.0 | 10,00 | 11,20 | 35/36/38 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 840 / 288 / 840 |
| KCIBF-112 DN5.0 | 11,20 | 12,50 | 36/37/40 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 840 / 288 / 840 |
| KCIBF-140 DN5.0 | 14,00 | 16,00 | 37/39/42 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 840 / 288 / 840 |
