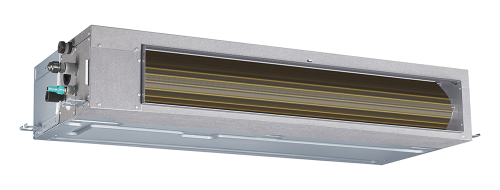

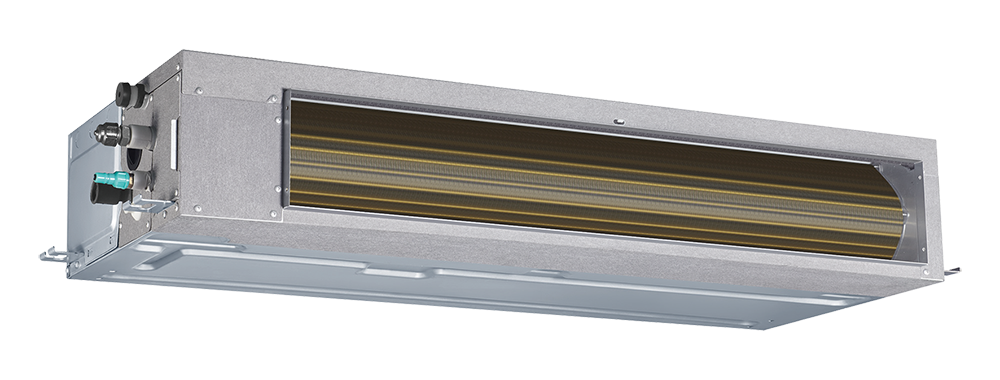

KAYSUN Ducts-IN
VRF
The Kaysun VRF duct range is an excellent solution for
spaces where air distribution needs to be balanced.
These units automatically regulate static pressure.
Characteristics:
• Available pressure up to 50 Pa.
• 199 mm standard height.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation.
spaces where air distribution needs to be balanced.
These units automatically regulate static pressure.
Characteristics:
• Available pressure up to 50 Pa.
• 199 mm standard height.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | |||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Max. pressure available | DIMENSIONS (mm) | ||||||
| KPDF-15 DN5.0 | 1,50 | 1,80 | 24/25/26 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 663 / 199 / 470 |
| KPDF-22 DN5.0 | 2,20 | 2,50 | 25/26/28 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 663 / 199 / 470 |
| KPDF-28 DN5.0 | 2,80 | 3,20 | 26/28/30 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 663 / 199 / 470 |
| KPDF-36 DN5.0 | 3,60 | 4,00 | 27/28/30 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 803 / 199 / 470 |
| KPDF-45 DN5.0 | 4,50 | 5,00 | 29/31/33 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 1003 / 199/ 470 |
| KPDF-56 DN5.0 | 5,60 | 6,30 | 31/33/35 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 1003 / 199/ 470 |
| KPDF-71 DN5.0 | 7,10 | 8,00 | 31/33/35 | R-410A/R-32 | 1f/240V | 15A | 50Pa | 1203 / 199/ 470 |
