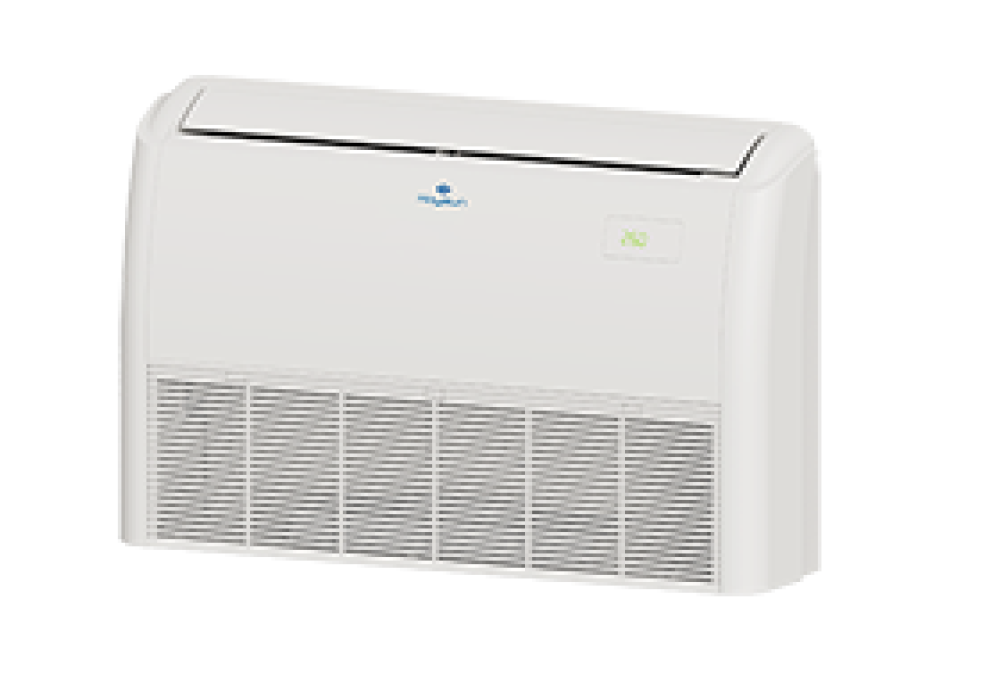

KAYSUN Floor/Ceiling-IN
VRF
Unit featuring flexible installation with DC Inverter motors, compact
design, suitable for any space. As its name suggests, they can be
installed on the ceiling horizontal position and on the floor in vertical
position. This is possible due to the design of its condensation tray.
Characteristics
• Two installation positions: Floor or ceiling mounted.
• Quiet operation.
• Multiple louver positions.
design, suitable for any space. As its name suggests, they can be
installed on the ceiling horizontal position and on the floor in vertical
position. This is possible due to the design of its condensation tray.
Characteristics
• Two installation positions: Floor or ceiling mounted.
• Quiet operation.
• Multiple louver positions.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Indoor airflow (m³/h) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | ||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | DIMENSIONS (mm) | |||||||
| KPCF-56 DN5.0 | 5,60 | 6,30 | 751/794/883 | 36/38/41 | R-410A/R-32 | 1f/240V | 15A | 1069 / 674 / 234 |
| KPCF-90 DN5.0 | 9,00 | 10,00 | 1138/1218/1397 | 42/44/47 | R-410A/R-32 | 1f/240V | 15A | 1284 / 674 / 234 |
| KPCF-140 DN5.0 | 14,00 | 15,00 | 1677/1810/2070 | 44/46/50 | R-410A/R-32 | 1f/240V | 15A | 1649 / 674 / 234 |
