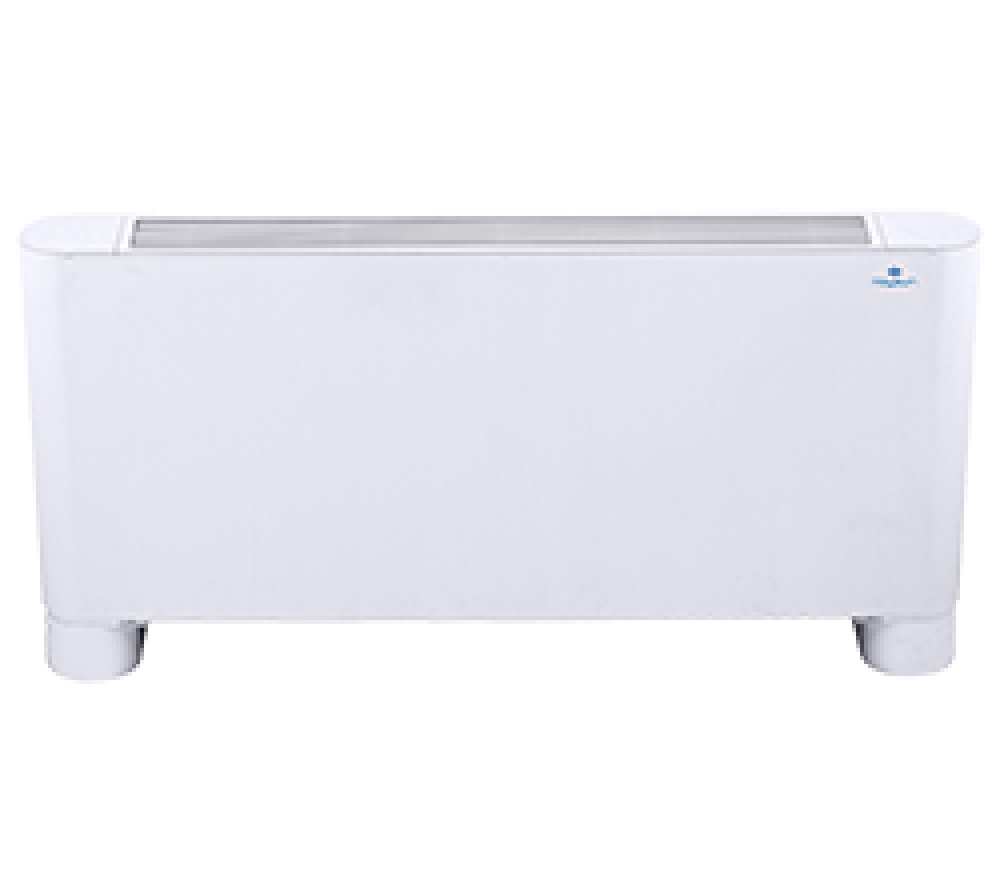

KAYSUN Floor Standing-IN
VRF
The streamlined design of this unit is the perfect solution
for saving space as, thanks to its reduced depth it enjoys
flexible installation thereby gracefully harmonising with
the indoor design of the room.
Characteristics
• Dirty Filters Indicator Signal.
• 0.5°C/1°C Setting Temperature Adjustment.
• Multiple operating modes
for saving space as, thanks to its reduced depth it enjoys
flexible installation thereby gracefully harmonising with
the indoor design of the room.
Characteristics
• Dirty Filters Indicator Signal.
• 0.5°C/1°C Setting Temperature Adjustment.
• Multiple operating modes
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | ||
|---|---|---|---|---|---|---|---|
| Max.fuse current" | DIMENSIONS (mm) | ||||||
| KSEF-22 DN5.0 | 2,20 | 2,40 | 31/31/32 | R-410A/R-32 | 1f/240V | 15A | 1020 / 495 / 200 |
| KSEF-36 DN5.0 | 3,60 | 4,00 | 31/32/34 | R-410A/R-32 | 1f/240V | 15A | 1020 / 495 / 200 |
| KSEF-56 DN5.0 | 5,60 | 6,30 | 33/33/35 | R-410A/R-32 | 1f/240V | 15A | 1360 / 591 / 200 |
| KSEF-80 DN5.0 | 8,00 | 9,00 | 36/37/39 | R-410A/R-32 | 1f/240V | 15A | 1360 / 591 / 200 |
