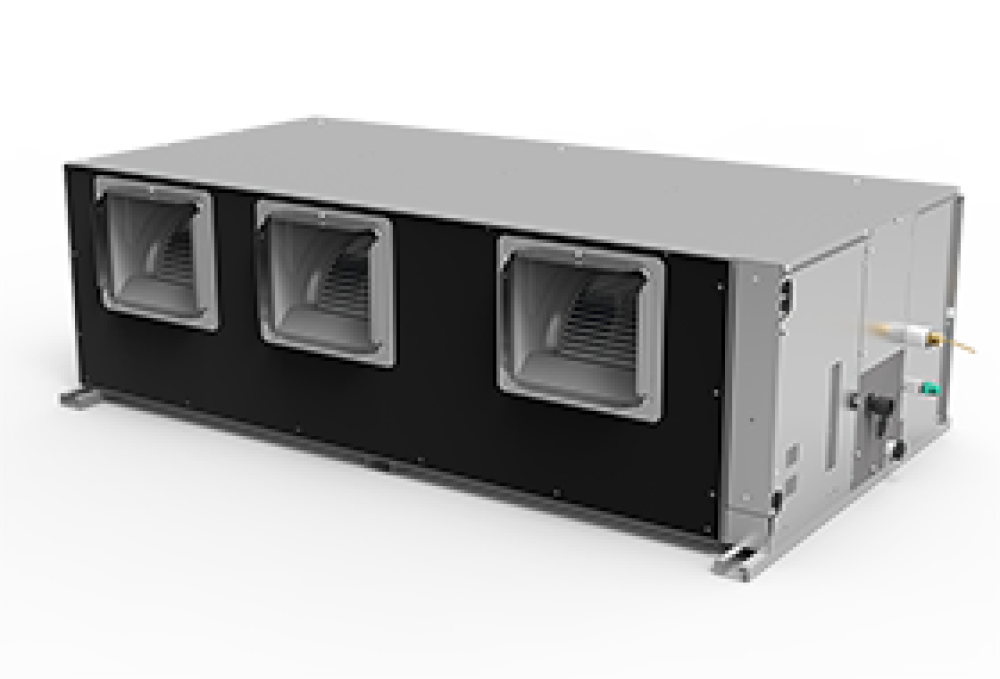

KAYSUN High Pressure Ducts-IN
VRF
The Kaysun range of High Pressure Duct system is ideal for the
climate control of large areas, as it provides high cooling power
and available pressures of up to 400 Pa, in conjunction with high
air flows and the new constant airflow control technology. Thanks to
the wide variety of outdoor units, it can also be adapted to any type of
installation in an ideal manner.
Characteristics
• Available pressure up to 400 Pa.
• Standard height 580 mm.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation.
climate control of large areas, as it provides high cooling power
and available pressures of up to 400 Pa, in conjunction with high
air flows and the new constant airflow control technology. Thanks to
the wide variety of outdoor units, it can also be adapted to any type of
installation in an ideal manner.
Characteristics
• Available pressure up to 400 Pa.
• Standard height 580 mm.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | |||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Max. pressure available | DIMENSIONS (mm) | ||||||
| KPDUF-200 DN5.0 | 20,00 | 22,50 | 44/46/50 | R-410A/R-32 | 1f/240V | 30A | 400Pa | 1300 / 580 /900 |
| KPDUF-252 DN5.0 | 25,20 | 26,00 | 44/46/50 | R-410A/R-32 | 1f/240V | 30A | 400Pa | 1300 / 580 /900 |
| KPDUF-280 DN5.0 | 28,00 | 31,50 | 44/46/50 | R-410A/R-32 | 1f/240V | 30A | 400Pa | 1300 / 580 /900 |
| KPDUF-400 DN5.0 | 40,00 | 45,00 | 50/52/56 | R-410A/R-32 | 1f/240V | 30A | 400Pa | 1850 / 580 /900 |
| KPDUF-450 DN5.0 | 45,00 | 56,00 | 50/52/56 | R-410A/R-32 | 1f/240V | 30A | 400Pa | 1850 / 580 /900 |
| KPDUF-560 DN5.0 | 56,00 | 63,00 | 53/54/58 | R-410A/R-32 | 1f/240V | 30A | 400Pa | 1850 / 580 /900 |
