KAYSUN Hybrid Multisystem
Residential

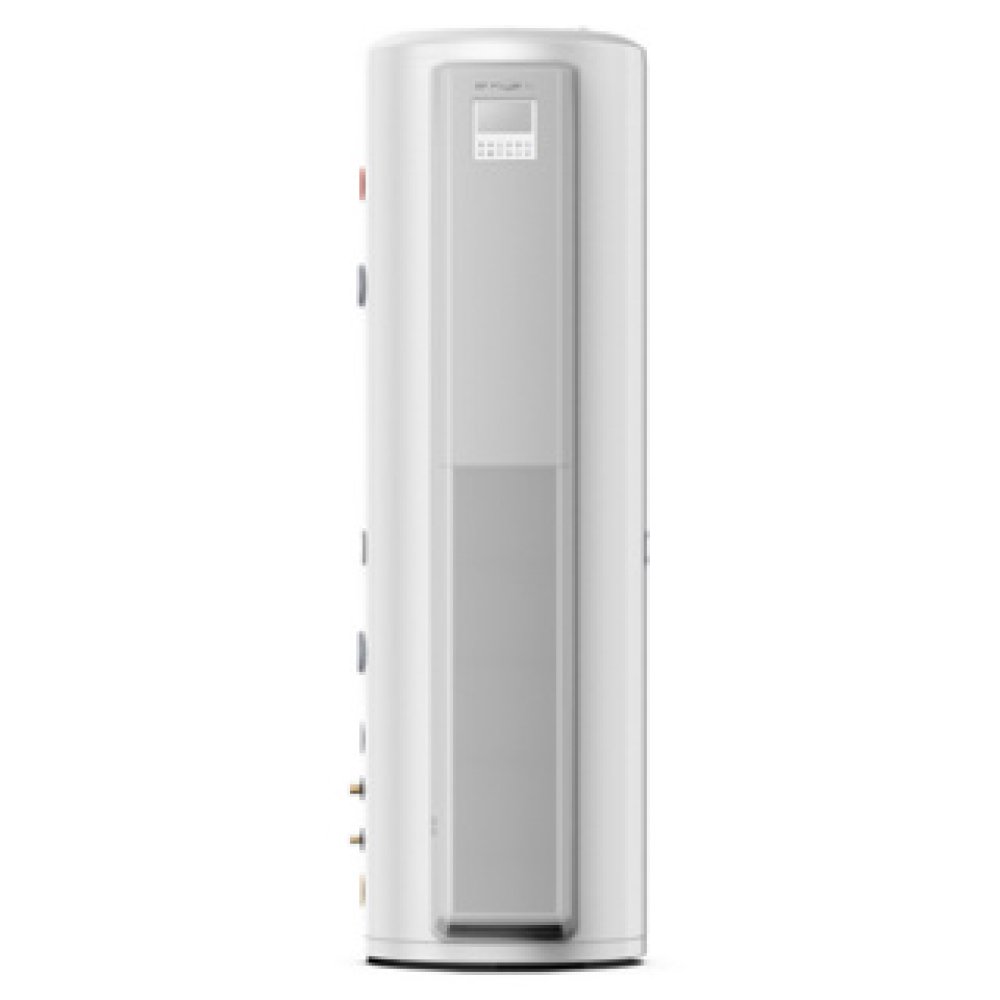

All-in-one KTHR‑190 solution combining air conditioning, domestic hot water production, and optional underfloor heating.
- The production of domestic hot water uses Heat Recovery technology, so water is heated almost for free during cooling.
- The unit can be controlled via built-in WiFi or a smartphone app (supports Smart Home).

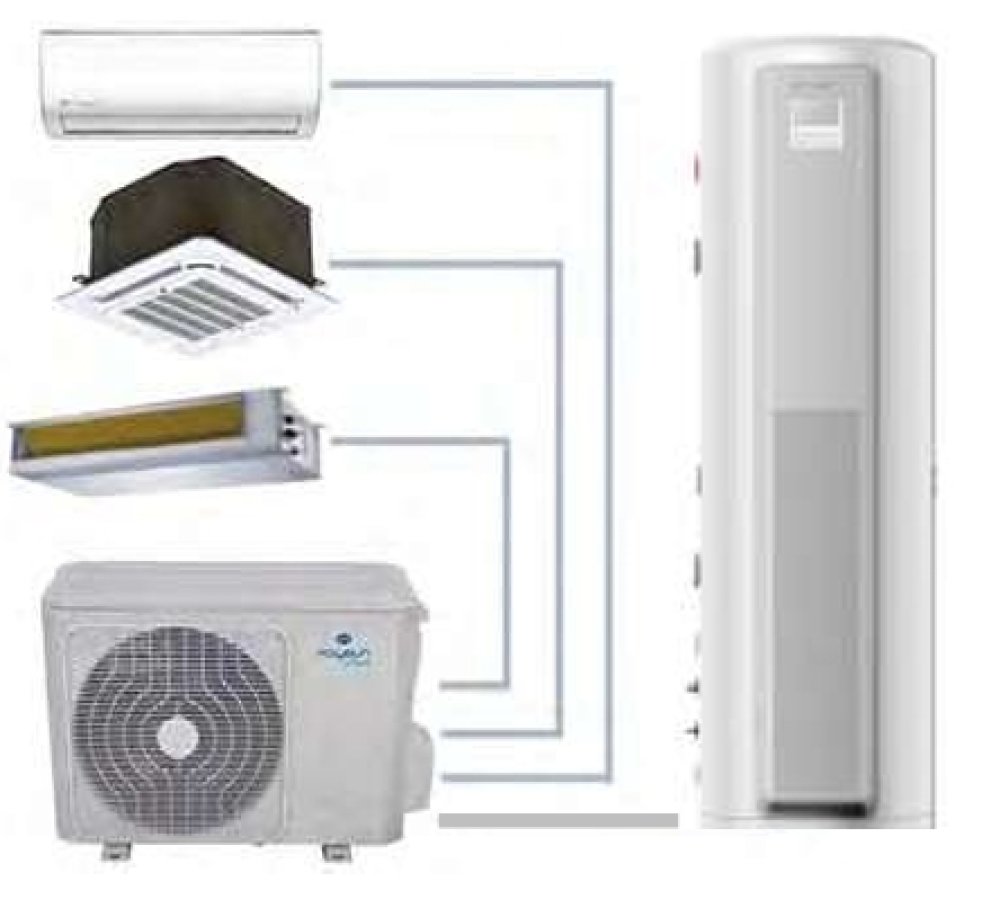

- Flexible connection to wall-mounted, console, cassette, or ducted indoor units.
- Ideal for weekend cottages, low-cost houses, or mobile homes, without the need for separate underfloor heating.
Parameters
| Type | Water‑heating capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Tank capacity (l) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|
| KTHR-100 | 3,8 | A+ | 22 | 100 | R-32 | 1f/230V | 20A / type C | -15 / 50 °C | -15 / 24 °C |
| KTHR-190 | 4 | A+ | 22 | 190 | R-32 | 1f/230V | 20A / type C | -15 / 50 °C | -15 / 24 °C |
