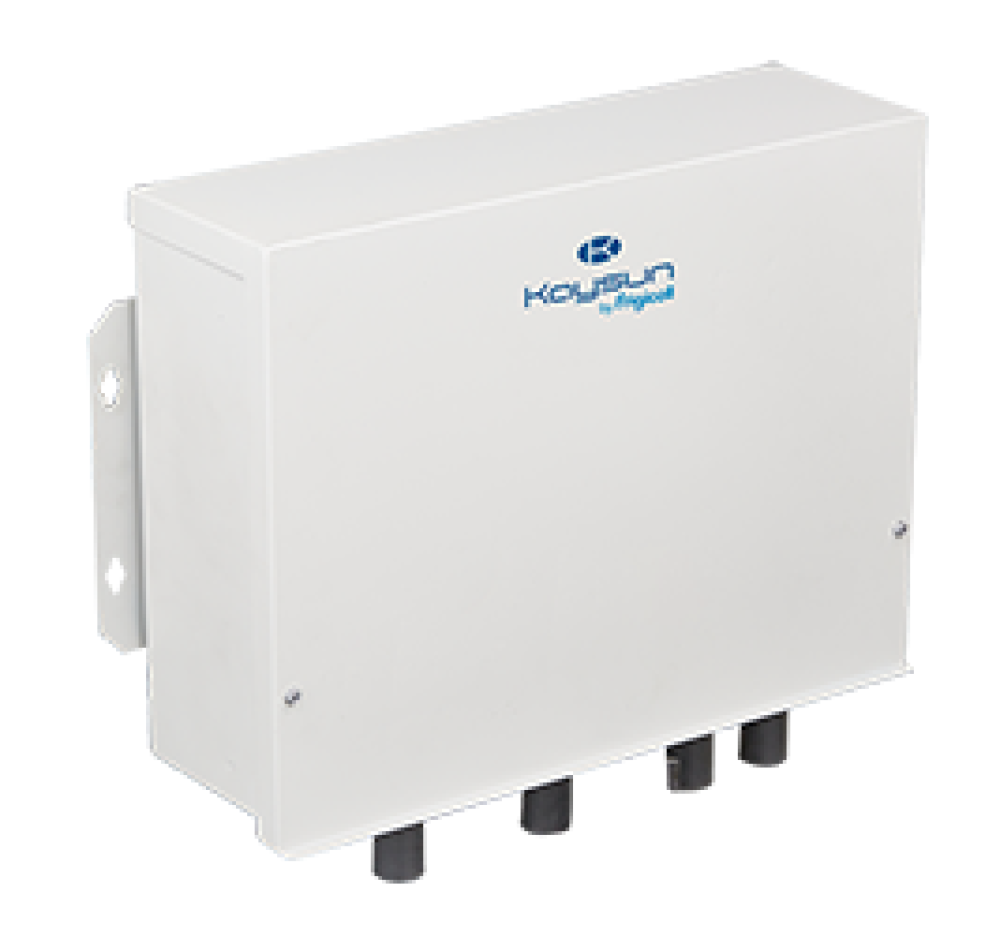

KAYSUN KAHU
VRF
The KAHU can be used to connect Kaysun VRF outdoor
units to direct expansion Air Handling Units, providing
a solution suited to the specific needs of each project.
They are an addition to the Kaysun VRF in combination with all other
indoor unit ranges.
Characteristics
• Compatible with S6 and S8 protocols.
• Supports third-party DC control.
• Capacity from 1,8 kW to 56 kW.
• Combinable up to 4 units.
units to direct expansion Air Handling Units, providing
a solution suited to the specific needs of each project.
They are an addition to the Kaysun VRF in combination with all other
indoor unit ranges.
Characteristics
• Compatible with S6 and S8 protocols.
• Supports third-party DC control.
• Capacity from 1,8 kW to 56 kW.
• Combinable up to 4 units.
Parameters
| Type | Cooling Capacity (kW) | NET WEIGHT (kg) | Refrigerant | Power Supply | ||
|---|---|---|---|---|---|---|
| Max.fuse current" | DIMENSIONS (mm) | |||||
| KAHU-90.5 | from 1,80 to 9,00 | 6,20 | R-410A/R-32 | 1f/240V | 3,5A | 479 / 384 / 134 |
| KAHU-200.5 | from 9,00 to 20,00 | 6,20 | R-410A/R-32 | 1f/240V | 3,5A | 479 / 384 / 134 |
| KAHU-360.5 | from 20,00 to 36,00 | 6,40 | R-410A/R-32 | 1f/240V | 15A | 479 / 384 / 134 |
| KAHU-560.5 | from 36,00 to 46,00 | 6,40 | R-410A/R-32 | 1f/240V | 15A | 479 / 384 / 134 |
