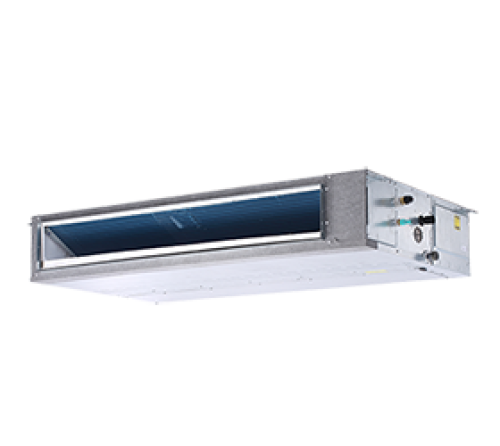

KAYSUN Medium Pressure Ducts-IN
VRF
Medium pressure duct units offer high air flows, so the
air supply distance is longer. Especially in long and narrow
spaces, such as corridors, this can reduce the number of
units used and save investment costs.
Characteristics
• Available pressure up to 160 Pa.
• 245 mm. standard height.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation
air supply distance is longer. Especially in long and narrow
spaces, such as corridors, this can reduce the number of
units used and save investment costs.
Characteristics
• Available pressure up to 160 Pa.
• 245 mm. standard height.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | |||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Max. pressure available | DIMENSIONS (mm) | ||||||
| KPDHF-45 DN5.0 | 4,50 | 5,00 | 27/28/32 | R-410A/R-32 | 1f/240V | 15A | 160Pa | 710 / 245 / 770 |
| KPDHF-71 DN5.0 | 7,10 | 8,00 | 29/31/34 | R-410A/R-32 | 1f/240V | 15A | 160Pa | 910 / 245 / 770 |
| KPDHF-90 DN5.0 | 9,00 | 10,00 | 31/33/36 | R-410A/R-32 | 1f/240V | 15A | 160Pa | 1160 / 245 / 770 |
| KPDHF-112 DN5.0 | 11,20 | 12,50 | 31/33/37 | R-410A/R-32 | 1f/240V | 15A | 160Pa | 1510 / 245 / 770 |
| KPDHF-140 DN5.0 | 14,00 | 14,00 | 32/34/38 | R-410A/R-32 | 1f/240V | 15A | 160Pa | 1510 / 245 / 770 |
| KPDHF-160 DN5.0 | 16,00 | 16,00 | 34/36/40 | R-410A/R-32 | 1f/240V | 15A | 160Pa | 1510 / 245 / 770 |
