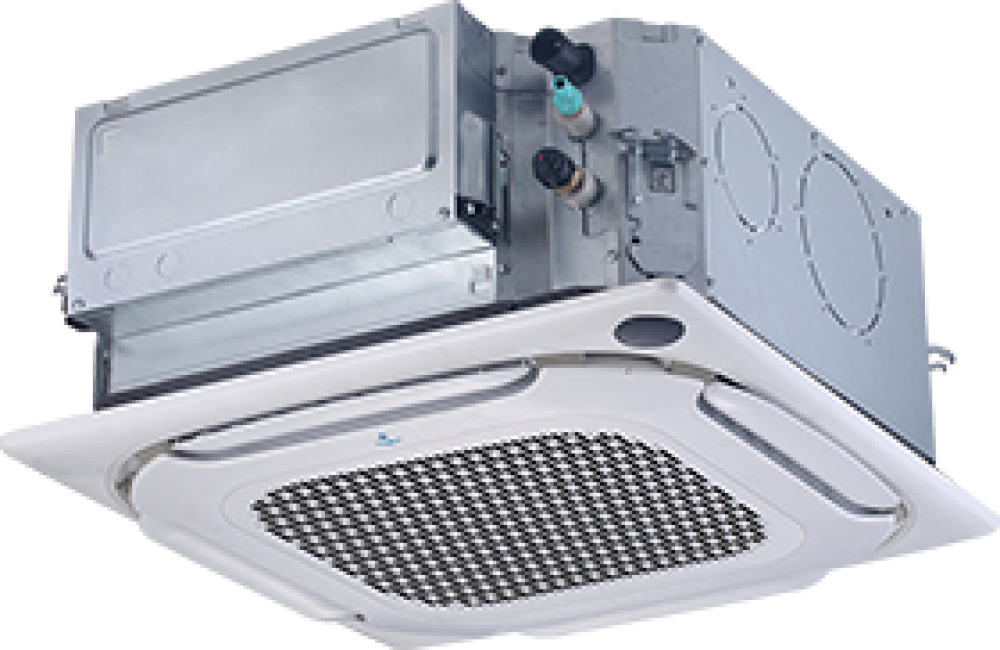

KAYSUN Mini Amazon hybrid Cassettes
VRF
The cassettes for Mini Amazon series are specially designed to be
integrated in hybrid systems of VRF and hydraulic modules. They
supply air in a 360° pattern for even, fast, and wide-reaching air
conditioning that reaches every corner of your room, thanks to their
DC Inverter fan and available pressure up to 50Pa.
Characteristics
• 360º Airflow.
• Individual louver control.
• 7 speeds.
• High ceiling installation.
integrated in hybrid systems of VRF and hydraulic modules. They
supply air in a 360° pattern for even, fast, and wide-reaching air
conditioning that reaches every corner of your room, thanks to their
DC Inverter fan and available pressure up to 50Pa.
Characteristics
• 360º Airflow.
• Individual louver control.
• 7 speeds.
• High ceiling installation.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | |||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Max. pressure available | DIMENSIONS (mm) | ||||||
| KCIF-22 DR5.0H | 2,20 | 2,40 | 26/27/28 | R-32 | 1f/240V | 16A | 30Pa | 575 / 235 / 638 |
| KCIF-28 DR5.0H | 2,80 | 3,20 | 26/27/29 | R-32 | 1f/240V | 16A | 30Pa | 575 / 235 / 638 |
| KCIF-36 DR5.0H | 3,60 | 4,00 | 27/28/30 | R-32 | 1f/240V | 16A | 30Pa | 575 / 235 / 638 |
| KCIF-56 DR5.0H | 5,60 | 6,30 | 35/36/38 | R-32 | 1f/240V | 16A | 30Pa | 575 / 235 / 638 |
