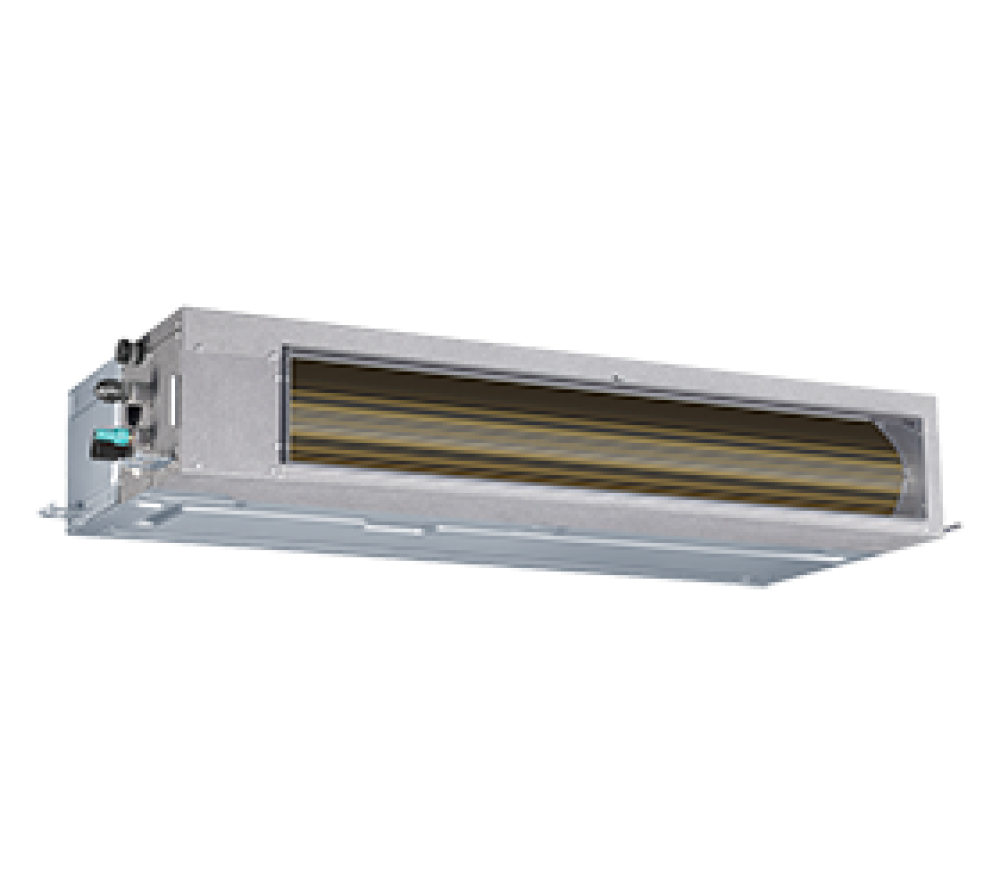

KAYSUN Mini Amazon Hybrid Ducts
VRF
The ducts for Mini Amazon series are specially designed to be integrated
in hybrid systems of VRF and hydraulic modules. With reduced
dimensions and available pressure of up to 160Pa they suit all kind of
applications.
Characteristics
• Available pressure up to 160 Pa.
• 199/245 mm standard height.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation.
in hybrid systems of VRF and hydraulic modules. With reduced
dimensions and available pressure of up to 160Pa they suit all kind of
applications.
Characteristics
• Available pressure up to 160 Pa.
• 199/245 mm standard height.
• Technology Constant air flow.
• Condensate pump as standard.
• Quiet operation.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | |||
|---|---|---|---|---|---|---|---|---|
| Max.fuse current" | Max. pressure available | DIMENSIONS (mm) | ||||||
| KPDF-22 DR5.0H | 2,20 | 2,50 | 25/26/28 | R-32 | 1f/240V | 15A | 50Pa | 653 / 199 / 470 |
| KPDF-28 DR5.0H | 2,80 | 3,20 | 26/28/30 | R-32 | 1f/240V | 15A | 50Pa | 653 / 199 / 470 |
| KPDF-36 DR5.0H | 3,60 | 4,00 | 27/28/30 | R-32 | 1f/240V | 15A | 50Pa | 803 / 199 / 470 |
| KPDF-56 DR5.0H | 4,50 | 5,00 | 31/33/35 | R-32 | 1f/240V | 15A | 50Pa | 1003 / 199/ 470 |
| KPDF-71 DR5.0H | 7,10 | 8,00 | 31/33/35 | R-32 | 1f/240V | 15A | 50Pa | 1203 / 199/ 470 |
| KPDHF-90 DR5.0H | 9,00 | 10,00 | 31/33/36 | R-32 | 1f/240V | 15A | 160Pa | 1160 / 245/ 770 |
| KPDHF-112 DR5.0H | 11,20 | 12,50 | 31/33/37 | R-32 | 1f/240V | 15A | 160Pa | 1510 / 245/ 770 |
| KPDHF-140 DR5.0H | 14,00 | 14,00 | 32/34/38 | R-32 | 1f/240V | 15A | 160Pa | 1510 / 245/ 770 |
