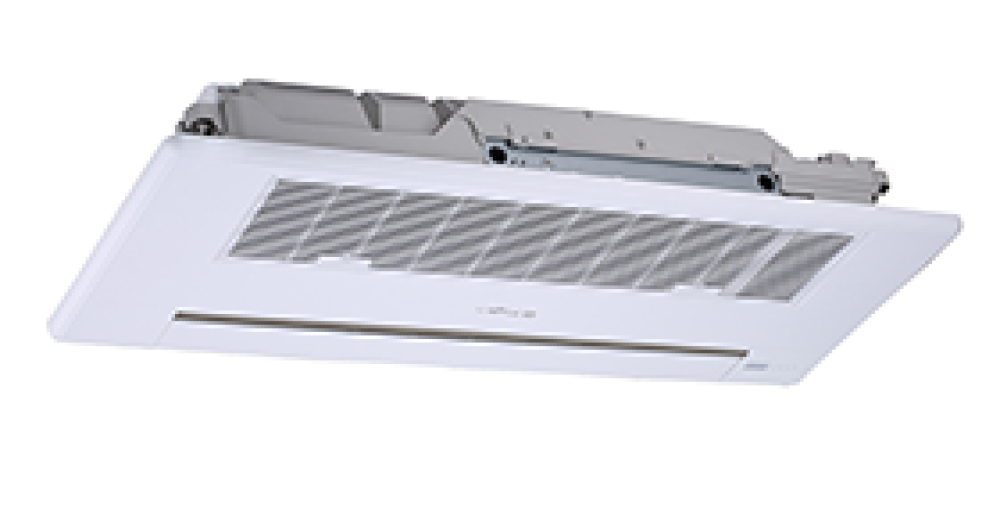

KAYSUN One Way Cassette-IN
VRF
Units featuring a compact, light design, making the
installation of the unit much easier. Thanks to its contained
profile of only 153 mm, depending on the capacity, they are
ideal to install in very shallow false ceiling.
Characteristics
• Multiple Steps Vertical Swing.
• 0.5°C/1°C Setting Temperature Adjustment.
• Quiet Operation.
• Very compact unit.
installation of the unit much easier. Thanks to its contained
profile of only 153 mm, depending on the capacity, they are
ideal to install in very shallow false ceiling.
Characteristics
• Multiple Steps Vertical Swing.
• 0.5°C/1°C Setting Temperature Adjustment.
• Quiet Operation.
• Very compact unit.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | ||
|---|---|---|---|---|---|---|---|
| Max.fuse current" | DIMENSIONS (mm) | ||||||
| KCOF-22 DN5.0 | 2,20 | 2,60 | 25/26/28 | R-410A/R-32 | 1f/240V | 15A | 1054 / 153 / 428 |
| KCOF-36 DN5.0 | 3,60 | 4,00 | 32/34/37 | R-410A/R-32 | 1f/240V | 15A | 1054 / 153 / 428 |
| KCOF-71 DN5.0 | 7,10 | 8,00 | 37/39/41 | R-410A/R-32 | 1f/240V | 15A | 1275 / 189 / 452 |
