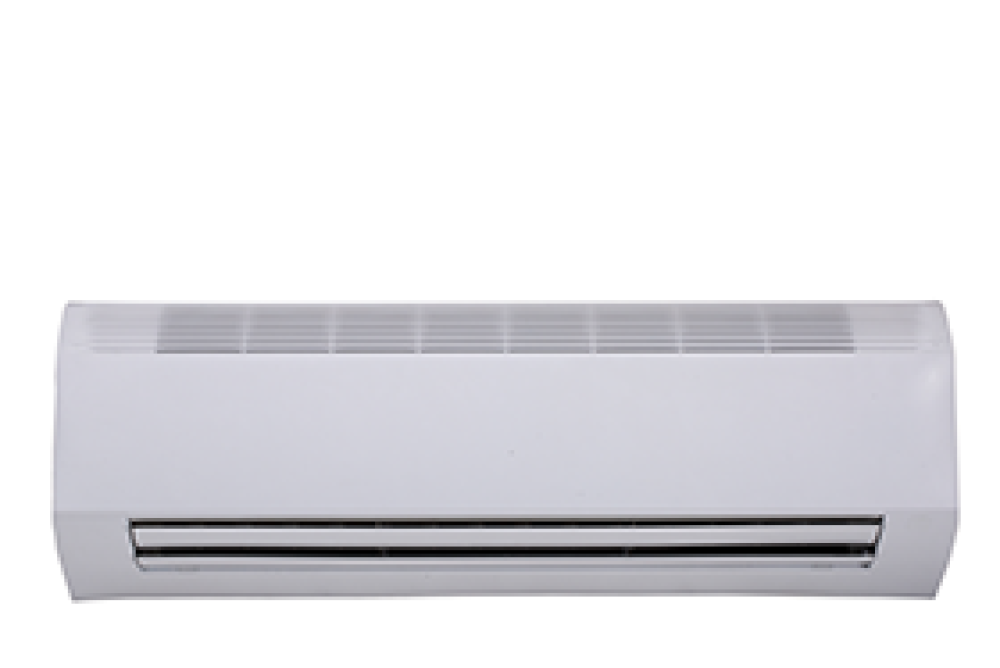

KAYSUN Wall-Mounted-IN
VRF
Wall-mounted indoor units with DC Inverter fans and an elegant
front design. Featuring sleek lines and all the latest Kaysun
technology.
Characteristics
• Standard height 295 mm.
• Bi-directional coanda airflow.
• Possibility to install at 3 cm. from the ceiling.
• Free drainage without space restrictions.
front design. Featuring sleek lines and all the latest Kaysun
technology.
Characteristics
• Standard height 295 mm.
• Bi-directional coanda airflow.
• Possibility to install at 3 cm. from the ceiling.
• Free drainage without space restrictions.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | SOUND PRESSURE (dB(A)) | Refrigerant | Power Supply | ||
|---|---|---|---|---|---|---|---|
| Max.fuse current" | DIMENSIONS (mm) | ||||||
| KAYF-15 DN5.0 | 1,50 | 1,70 | 29/30/31 | R-410A/R-32 | 1f/240V | 15A | 750 / 295 / 265 |
| KAYF-22 DN5.0 | 2,20 | 2,40 | 29/30/32 | R-410A/R-32 | 1f/240V | 15A | 750 / 295 / 265 |
| KAYF-28 DN5.0 | 2,80 | 3,20 | 31/32/34 | R-410A/R-32 | 1f/240V | 15A | 750 / 295 / 265 |
| KAYF-36 DN5.0 | 3,60 | 4,00 | 31/33/36 | R-410A/R-32 | 1f/240V | 15A | 750 / 295 / 265 |
| KAYF-45 DN5.0 | 4,50 | 5,00 | 31/32/35 | R-410A/R-32 | 1f/240V | 15A | 950 / 295 / 265 |
| KAYF-56 DN5.0 | 5,60 | 6,30 | 33/35/39 | R-410A/R-32 | 1f/240V | 15A | 950 / 295 / 265 |
| KAYF-80 DN5.0 | 8,00 | 9,00 | 36/38/42 | R-410A/R-32 | 1f/240V | 15A | 1200 / 295 / 265 |
